Excalibur light sport aircraft.

Tom Karr manufacturer of the Excalibur two place light sport aircraft dropped into the Sun N Fun with his latest wide body model.

The unit can be ordered at no extra cost and gives the pilot and passenger an extra two inches in width which makes it ideal for larger pilots.

Other changes to the Excalibur for 2006 include shortening the ailerons from 12 feet to 6 feet for better performance.

This also allows for the installation of optional 6 foot flaps which can be used in short field applications, or for additional lift for float plane operation. The Excalibur is also now available with the optional Rotax 582 with the standard Rotax twin radiator system.

The Excalibur comes standard with Rotax 503, GPL electric starter, and Rotax 2.58 to 1 B reduction drive. Options include the Rotax C and E drive.

For pilots wanting a digital instrument package Excalibur is now offering the Stratomaster instrument package. This package is available for the complete line of Rotax, Hirth, and HKS engines.

Some of the instruments on the Stratomaster include air speed, altimeter, artificial horizon, vertical speed, EGT, CHT, Water temp, and fuel gauge. The unit is supplied with all necessary probes.

The 2006 model Excalibur's feature a number of cosmetic changes. These include rounded tail fins versus the squared tail used in the past, and the addition of aluminum side plates in the area where the nose cone and body fabric join together for a more streamlined look.

Airframe changes include going from 6 Barry motor mounts to 8 Lord mounts, this  virtually eliminates engine vibration and provides increased thrust. Additional strength has also been added by the bolting of the stainless steel horizontal strut brackets to the fuselage stabilizer rather than riveting them.

For those looking to install floats on their Excalibur float mounting kits are now available for the Puddle Jumper and Shark standard and amphib floats.

Excalibur Light Sport Aircraft Specifications

Wingspan 31 ft. 6 in.
Chord 60"
Length 20 ft. 0 in.
Height 6 ft. 0 in.
Wing area 185 sq.ft.
Standard Engine Rotax 503 (52HP) air cooled
Empty weight 450 lbs
Useful load 500 lbs.
Ultimate load factor +6 -4
Build time 100-200 hours
Field assembly time 20 min.
Airframe Aluminum tube (6061-T6, 2024-T3) Steel, 4130 Chromoly, Stainless Steel pop rivets, AN/Mil Spec. hardware.
Standard Covering SUPERFLITE FAA approved fabric.

Excalibur Light Sport Aircraft Performance data

VNE 100 mph
Top level speed 90mph
Cruise speed 50-80 mph
Stall speed 30-35 mph
Climb rate 1200 fpm solo, 700 ft. dual
Take off roll 96 ft. solo, 196 ft. dual
Glide ratio 11:1 solo, 9:1 dual
Service ceiling 14,000 solo, 12,500 dual
Fuel used at cruise 2.3 gph to 4 gph
Fuel capacity 10 gal. (U.S.)
All data is based on average weight pilots, 170 lbs, and average sea level
For more information on the Excalibur contact:
Excalibur Aircraft
6439 Tractor Road
Sebring, Fla. 33872
863-385-9486

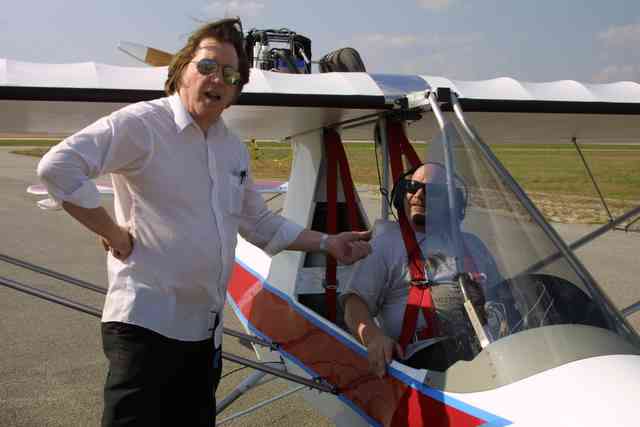

Tom Karr introduces the latest Excalibur design to reporter Dave Loveman
Tom Karr introduces the latest Excalibur design to reporter Dave Loveman
