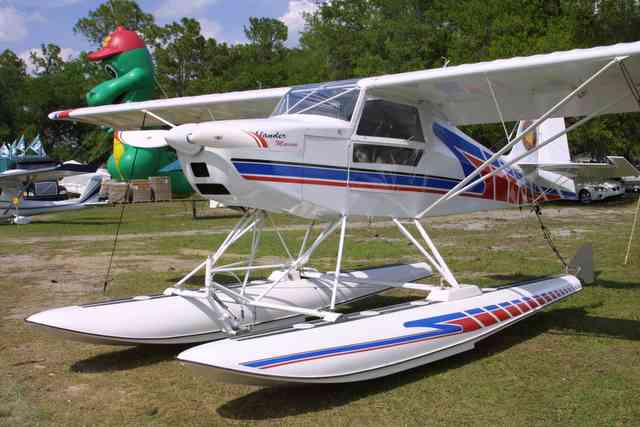

Highlander Specifications | Wing Span | 31'5"" | Area | 120.75 sq.ft. | Mean Cord | 46" | Length | 19' | Height | 7'10" | Length Fold | 20'8" | Width Folded | 7'11.5" | Cabin Width | 44" | Number of Seats | 2 | Number of Doors | 2 | Fuel Capacity | 18 gallons | Highlander Performance Specifications Actual Performance figures with the Rotax 912ULS 100hp. | VNE | 130 mph | Cruise | 105 mph | Stall with Flap 40 degrees | 27 mph | Clean Stall | 33 mph | Take Off Roll (1 person) | 130' ft. | Take Off Roll (2 person) | 300' ft. | Over 50ft. Obstacle | 580' ft. | Landing Roll | 250' ft. | 50 ft. Obstacle | 450' ft. | Highlander Weight and Loading | Gross Weight | 1232 lbs | Empty Weight W/912ULS | 530 lbs | Useful Load | 702 lbs | Load Limit Factors | +4g's-2g's | The two kits will be delivered in mid May 2006 and expect to be on line for flight training by mid summer. The planes will be offered initially to the Canadian market in kit form, but after construction of new hangar facilities is completed they will be also be offered under a builder assistance program and as ready to fly aircraft. Both the Highlander and Escapade use a 4130 chromoly steel fuselage covered in standard aircraft covering materials. The wings use a tube and ladder style of construction with round tube leading and trailing edge spars, again covered in conventional fabric. While the Highlander is a tail dragger, the Escapade is a tri-cycle gear both are tractor configuration aircraft featuring side by side seating, dual controls, and folding wings. Power is supplied by the Rotax 912 four cylinder four stroke engines or the four and six cylinder Jabiru engines. Current delivery times out of the factory are three months, building times are in the 500 hour range with no special tools required. The customer will spend the majority of his or her building times building the wings, covering and painting the plane installing the engine, wiring and instrument installation. For more information contact: |
